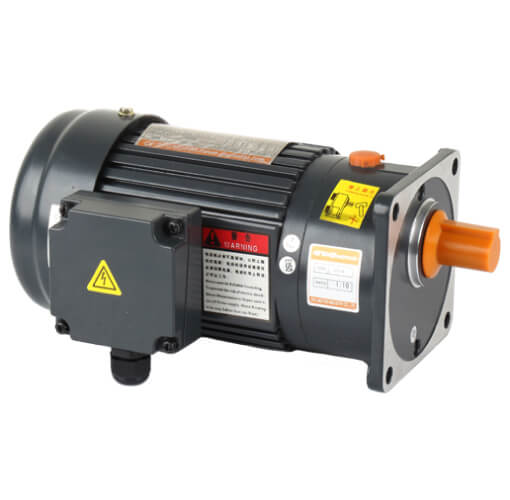

GPG – CV Series

  • OUTPUT POWER : 0.1 kW – 3.7 kW
  • GEARBOX OUTPUT SHAFT : 18, 22, 28, 32, 40 AND 50 mm.
  • GEAR RATIO : 3-200
  • POWER VOLTAGE : 1 PHASE 220 V., 3 PHASE 220/380 V.
  • MOUNTING : FOOT AND FLANGE MOUNTED
  • DC BRAKE 90 V. IS AVAILABLE
  • LUBRICATION : GREASE
  • Small-medium gear motors with continuous operation in normal and light duty type
  • Motor Type : Induction Motor and Electromagnetic Brake Motor
  • Output Power Range : 100 W, 200 W, 400 W, 750 W, 1500 W, 2200 W, 3700 W
  • Gearbox Size : CH18 , CH 22 , CH28 , CH 32 , CH40 , CH50
  • Ratio Range : 3-2500
  • Casing : Aluminium and Cast Iron
  • Gear Mounting : Flange-Mounted
  • Power Supply :
    • Single Phase 220-240 V. 50 Hz.
    • Three Phase 220-240/380-440 V. 50/60 Hz.
