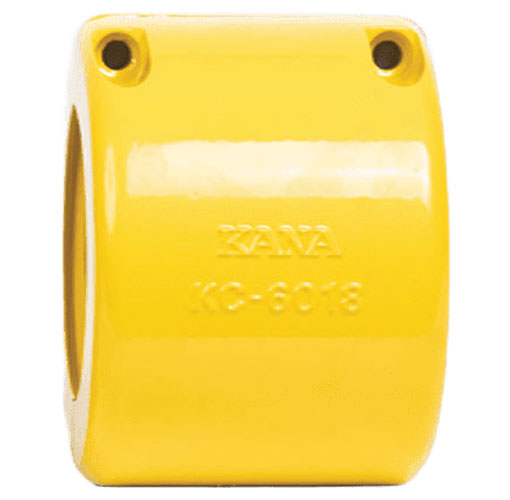

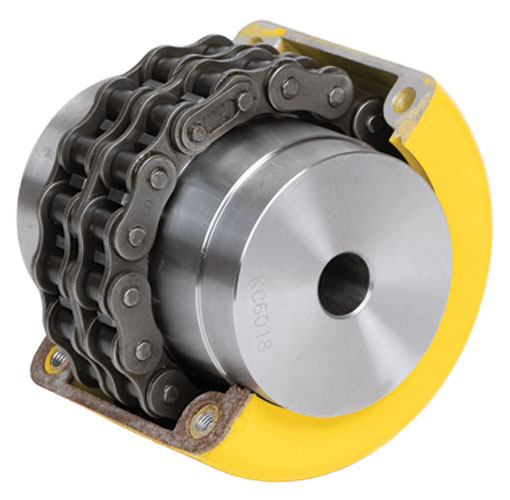

KANA – CHAIN COULPING

    • High quality chain coupling from Japan
    • In a series up to KC10020
    • Maximum allowable torque : 896 kgf.m.
    • Maximum allowable shaft diameter : 110 mm.

    COUPLING NO.

    		 KC4012 KC4016 KC5016 KC5018 KC6018 KC6020 KC6022 KC8018 KC8020 KC8022 KC10020

    MAX. SHAFT

    DIAMETER (mm.)

    		 22 32 40 45 56 61 71 80 86 100

    110
    MAX. ALLOWABLE

    TORQUE (kgf.m.)

    		 22.2 39.4 75 95 179 202 242 396 463 570

    896
