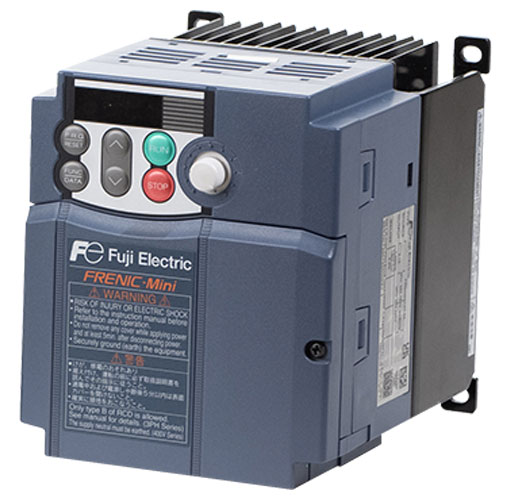

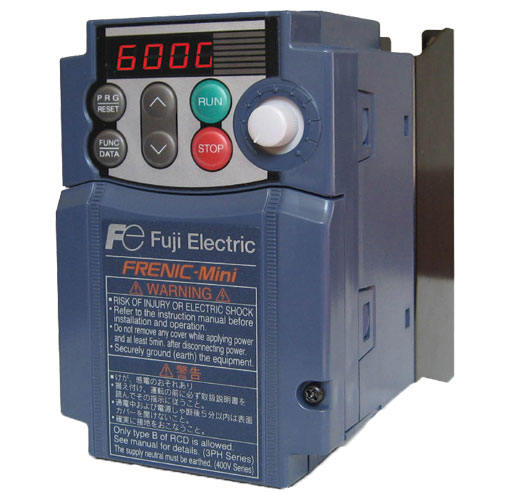

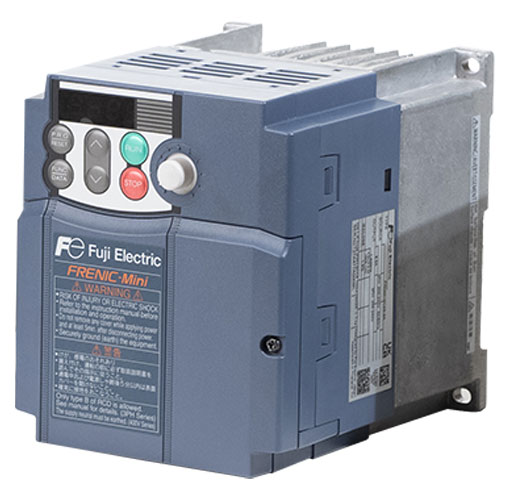

“FUJI ELECTRIC ” FRENIC-MINI C2

FRENIC-MINI C2 With its functionality, compact design, simple operation, and global compatibility,

The new FRENIC-Mini elevates the performance of a wide range of devices and equipment–including conveyors, fans, pumps, centrifugal separators, and food processing machines–to give you the system integration, energy efficiency, reduced labor, and lower overall costs you’re looking for.

E-CATALOG

Specifications:

  • OUTPUT FREQUENCY : 0.1 Hz – 400 Hz.
    • FREQUENCY SETTING POTENTIOMETER PROVIDED AS STANDARD, THE FREQUENCY CAN BE ADJUSTED EASILY BY HAND.
    • BUILT-IN RS-485 COMMUNICATIONS PORTS(RJ-45) AS STANDARD.
    • OVERLOAD CAPABILITY: 150% – 1 MIN, 200% – 0.5 SEC.
    • ENERGY-SAVING FUNCTION, PID FUNCTION
    • ENABLE TO BE APPLICABLE FOR VARIOUS APPLICATION.
    • SYNCHRONOUS MOTOR CONTROL FUNCTION.
    • EASY OPERATION AND MAINTENANCE.
  • Product Range
    • 3 PHASE 200 V. 0.1 kW TO 15 kW
    • 3 PHASE 400 V. 0.4 kW TO 15 kW
    • 1 PHASE 220 V. 0.1 kW TO 2.2 kW
    • 1 PHASE 100 V. 0.1 kW TO 0.75 kW

Typical applications:

  • Pumps and fans
  • Conveyors
  • Packaging, processing and washing machines

– ผลิตในประเทศญี่ปุ่น (Japan)
