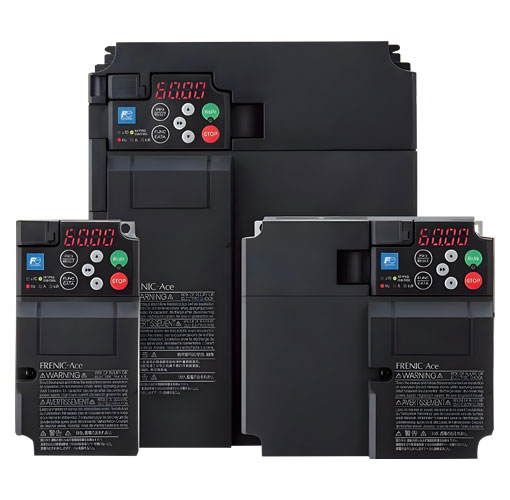

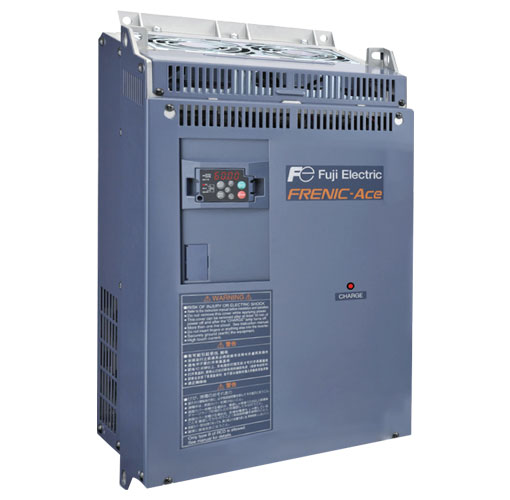

“FUJI ELECTRIC” FRENIC-ACE E3

FRENIC-ACE E3

The power of the industry’s new leading standard. Inherits and enhances the basic specifications of the E2 Series. Pursuing maximum performance in the smallest class of inverter bodies. New finless type and Ethernet type have been added to the product lineup. Enjoy better user-friendliness and performance than ever before.

High basic performance

Provides a full range of motor control and enhanced functionality. Supports a wide variety of networks to realize IoT.

Extensive lineup

Lineup of 4 types for each power supply voltage. Supports a wide range of applications from light loads to heavy loads.

Easy Maintenance

Easy wiring and setup, along with remote control, for enhanced work efficiency. Provides preventive and predictive maintenance functions to ensure safety.

E-CATALOG

Specifications:

  • OUTPUT FREQUENCY:
    • EXPANDED INVERTER VARIATIONS, INCLUDING STANDARD, BUILT-IN EMC FILTER, FINLESS AND ETHERNET BUILT-IN MODELS.
    • FASTER OPERATING SPEEDS UP TO 599 HZ
    • IMPROVES SPEED CONTROL RANGE TO STABILIZE TORQUE AT LOW SPEEDS
    • ADVANCED DYNAMIC TORQUE VECTOR CONTROL
    • CAPABLE OF ROTOR POSITIONING
    • ENHANCED CUSTOMIZABLE LOGIC FUNCTIONS
    • RS-485 PORT (DX-/DX+) PROVIDED SEPARATELY FROM THE MAIN UNIT PORT
    • OPTION CARDS AVAILABLE: ETHERNET/IP, PROFINET, MODBUS TCP, AND MORE
    • SIDE-BY-SIDE INSTALLATION
    • SUPPORTS A WIDE RANGE OF INVERTER POWER SUPPLY SPECIFICATIONS, INCLUDING 3-PHASE 200 V SERIES / 400 V SERIES AND SINGLE-PHASE 200 V SERIES.
    • AVAILABLE CAPACITY UP TO 22 KW (HHD)
    • EXPANSION OF FUNCTIONS BY REPLACING THE CONTROL TERMINAL BOARD
  • Product Range
    • 3 PHASE 200 V. 0.1 kW TO 22 kW
    • 3 PHASE 400 V. 0.4 kW TO 22 kW
    • 1 PHASE 220 V. 0.1 kW TO 2.2 kW

Typical applications:

  • Pumps and fans
  • Conveyors
  • Packaging, processing, and washing machines

– ผลิตในประเทศญี่ปุ่น (Japan)
