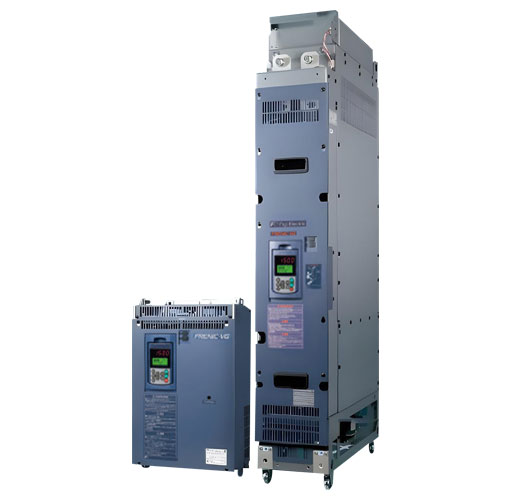

“FUJI ELECTRIC” FRENIC VG

“FUJI ELECTRIC” FRENIC VG

With the FRENIC-VG, Fuji Electric has concentrated its technologies to deliver the best-performing inverter on the market. In addition to basic performance, this model features the following dramatic improvements: support for previously difficult applications due to technical and capability limitations, easier, more user-friendly maintenance, and environmental friendliness and safety. Fuji Electric proudly introduces the FRENIC-VG to the world.

Concept

  • Improved Control Performance
  • Adaptation to Environment and Safety
  • A Wide Range of Applications
  • Easier Maintenance
E-CATALOG

Specifications:

    • UNIT TYPE– A TRADITIONAL STYLE VSD INCORPORATING BOTH RECTIFIER AND INVERTER SECTIONS IN ONE FRAMEWORK.
    • STACK TYPE– A MODULAR DESIGN WITH SEPARATE CONVERTER (DIODE) OR PWM (ACTIVE FRONT END) AND INVERTER STACKS, ALLOWING FOR MORE FLEXIBILITY IN DESIGN, MORE USER-FRIENDLY, AND EASIER TO MAINTAIN. MEETING THE INCREASING DEMANDS FOR EASIER INSTALLATION AND REPLACEMENT PROCEDURES, AS WELL L A SMALLER FOOTPRINT
    • POWERFUL: FROM 0.75 KW TO 630 KW IN TRIPLE RATING HD, LD, AND MD
    • STRONG: EVEN THOUGH IN HARD ENVIRONMENTS SUCH AS SULFURIZING GAS, SALTY ENVIRONMENTS, DUST, HUMIDITY, ETC.
    • FLEXIBLE: IM (OPEN AND CLOSED LOOP) AND PMSM (OPEN AND CLOSED LOOP) CONTROL
    • TORQUE ACCURACY: +/- 3%
    • CURRENT LOOP BANDWIDTH: 2000 Hz
    • SPEED CONTROL ACCURACY: +/- 0,005%
    • SPEED LOOP BANDWIDTH: 600 HZ
    • CONNECTED TO THE WORLD: USB ON BOARD, TYPICAL FIELD BUSES, AND ETHERNET-BASED FIELD BUS
    • MAKING SAFETY EASIER: STO, SS1, SLS, SBC
    • ALL APPLICATIONS SOLVED: CRANES, RUBBER, PAPER, WINDING, TEST BENCHES, PRESS, SHIPBOARD WINCH, FLYING SHEAR, POSITIONING, ETC. ARE INCLUDED
    • ADAPTABLE AND VERSATILE: 5 SLOTS FOR ADJUSTING TO THE REQUIREMENTS, REAL  TIME BUILT IN, FULL PLC ON BOARD OPTIONAL, ETC.
  • Product Range
    • (UNIT TYPE) (HD SPEC)
      • 3 PHASE 200 V. 0.75 kW. TO 90 kW.
      • 3 PHASE 400 V. 3.7 kW. TO 630 kW.
    • (STACK TYPE) (MD SPEC)
      • THREE-PHASE 400 V. SERIES 30 TO 800 kW.
      • THREE-PHASE 690 V. SERIES 90 TO 450 kW.

Typical applications:

  • Pumps and fans
  • Conveyors
  • Packaging, processing, and washing machines

– ผลิตในประเทศญี่ปุ่น (Made in Japan)
