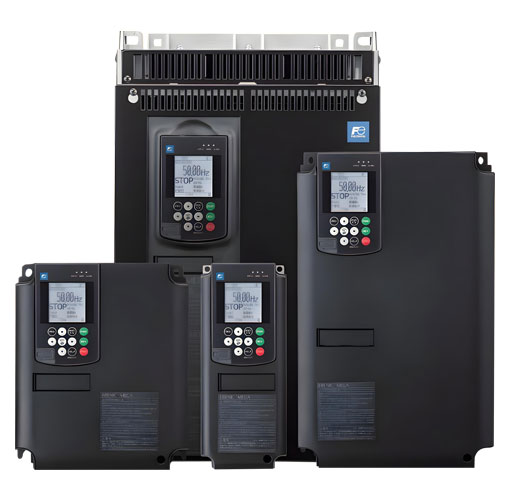

“FUJI ELECTRIC” FRENIC-MEGA G2

FRENIC-ACE E3

The power of the industry’s new leading standard. Inherits and enhances the basic specifications of the E2 Series. Pursuing maximum performance in the smallest class of inverter bodies. New finless type and Ethernet type have been added to the product lineup. Enjoy better user-friendliness and performance than ever before.

High basic performance

Provides a full range of motor control and enhanced functionality. Supports a wide variety of networks to realize IoT.

Extensive lineup

Lineup of 4 types for each power supply voltage. Supports a wide range of applications from light loads to heavy loads.

Easy Maintenance

Easy wiring and setup, along with remote control, for enhanced work efficiency. Provides preventive and predictive maintenance functions to ensure safety.

E-CATALOG

Specifications:

  • OUTPUT FREQUENCY:
    • BEST IN CLASS VECTOR CONTROL FOR GENERAL-PURPOSE INVERTER IMPROVES CONTROL PERFORMANCE.
    • ACCOMMODATING VARIOUS APPLICATIONS
      (FUNCTION OF DETECTION THE ABNORMAL BRAKING TRANSISTOR, OUTPUT BRAKE SIGNAL FOR MECHANICAL BRAKING CONTROL, CUSTOMIZABLE CONTROL LOGIC THROUGH THE BUILT-IN PLC FUNCTIONALITY, RATIO OPERATION OF THE MAIN SPEED, DANCER CONTROL FUNCTION OPTIMIZED FOR WINDING CONTROL)
    • KEYPAD WITH USB PORT ALLOWS YOU TO CHECK THE INFORMATION AT ANY TIME.
    • THE LIFE OF LIMITED-LIFE PARTS (COOLING FAN, CONDENSER, ETC.) IS EXTENDED. (DESIGNED LIFE IS 10 YEARS.)
    • INSTALLING A DEDICATED OPTIONAL CARD MAKES THE CC-LINK COMMUNICATION AVAILABLE.• CAPACITY RANGE: 0.4-630 KW.
      OVERLOAD CAPABILITY: 200%-3 SEC, 150%-1 MIN (HD MODE), 120%-1 MIN (LD MODE).
      • BUILT-IN RS-485 COMMUNICATIONS PORT (RJ-45) AS STANDARD.
      • BUILT-IN MINI USB PORT ON KEYPAD.
      • BUILT-IN BRAKING UNIT WITH 22KW OR SMALLER MODELS.
      • BUILT-IN BRAKING RESISTOR WITH 7.5KW OR SMALLER MODELS.
      • THIS IS THE KIND OF HIGH-FUNCTIONING INVERTER.
  • Product Range
    • 3 PHASE 200 V. 0.4 kW. TO 90 kW
    • 3 PHASE 400 V. 0.4 kW TO 630 kW

Typical applications:

  • Pumps and fans
  • Conveyors
  • Packaging, processing, and washing machines

– ผลิตในประเทศญี่ปุ่น (Made in Japan)
